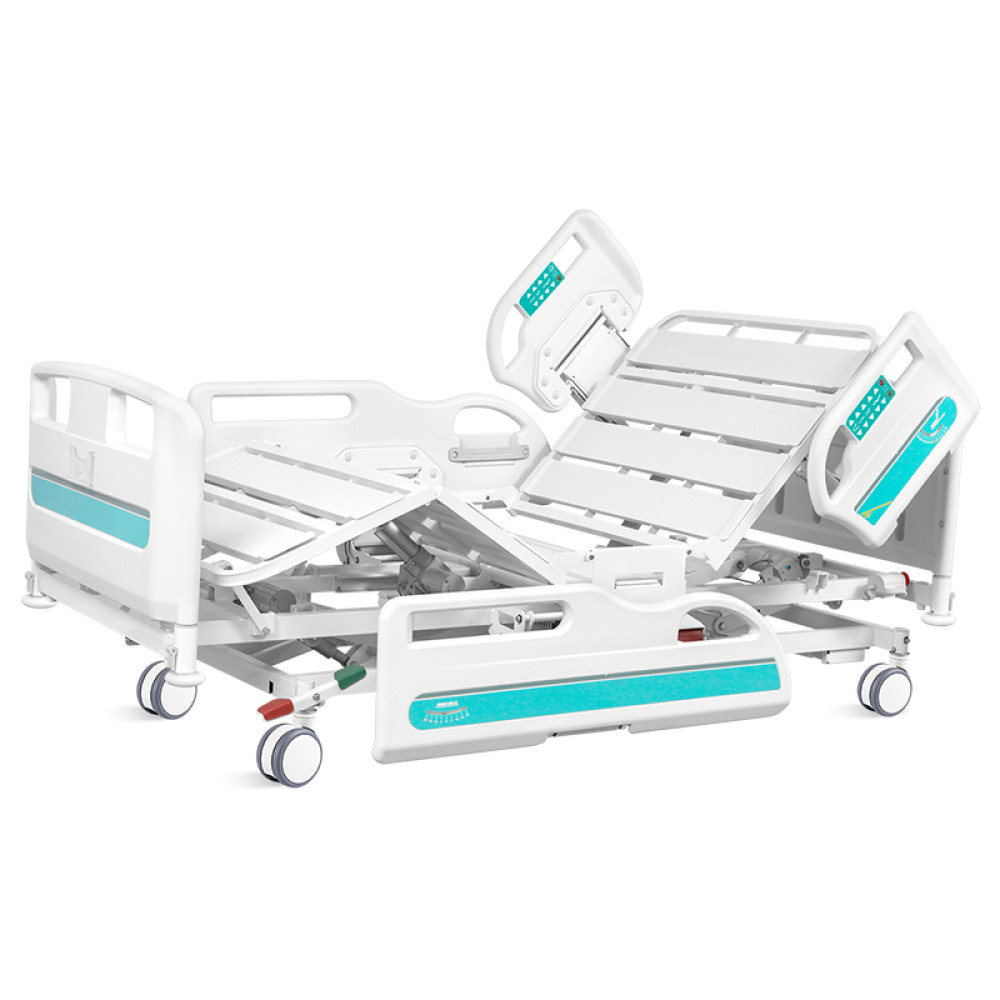

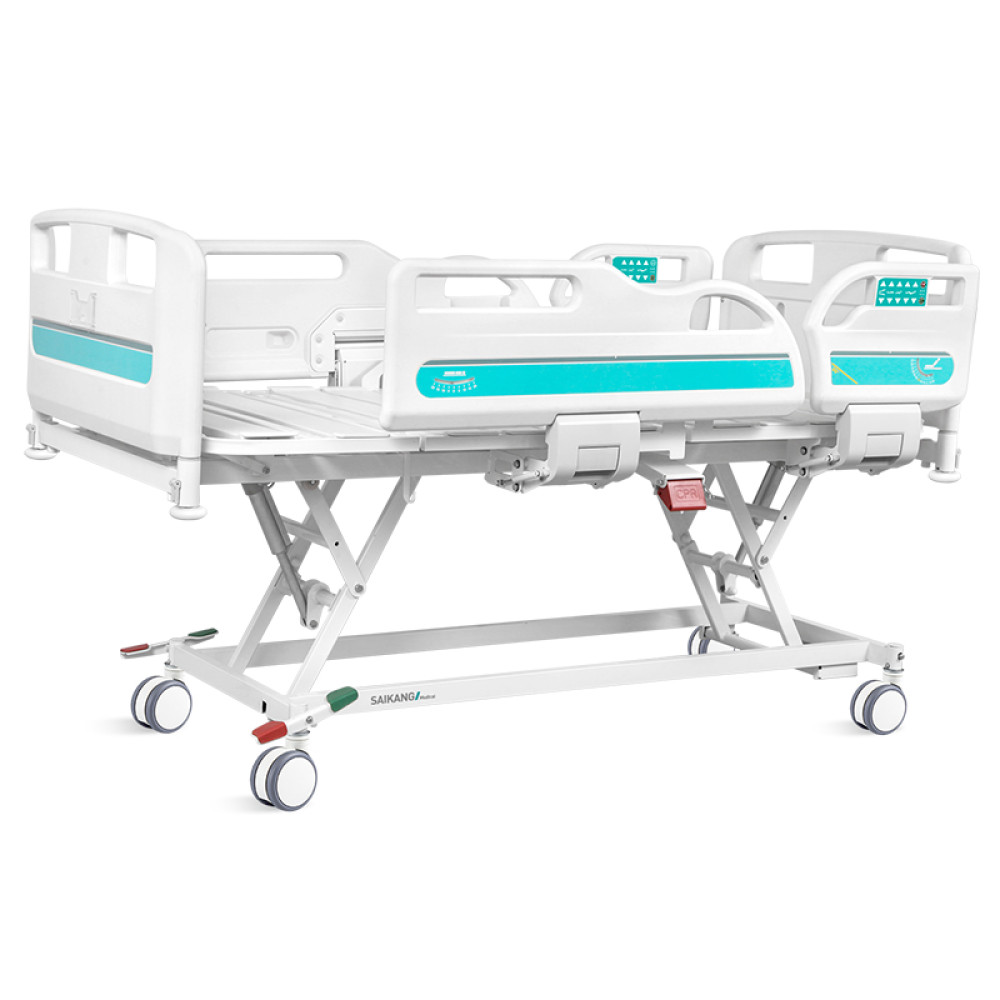

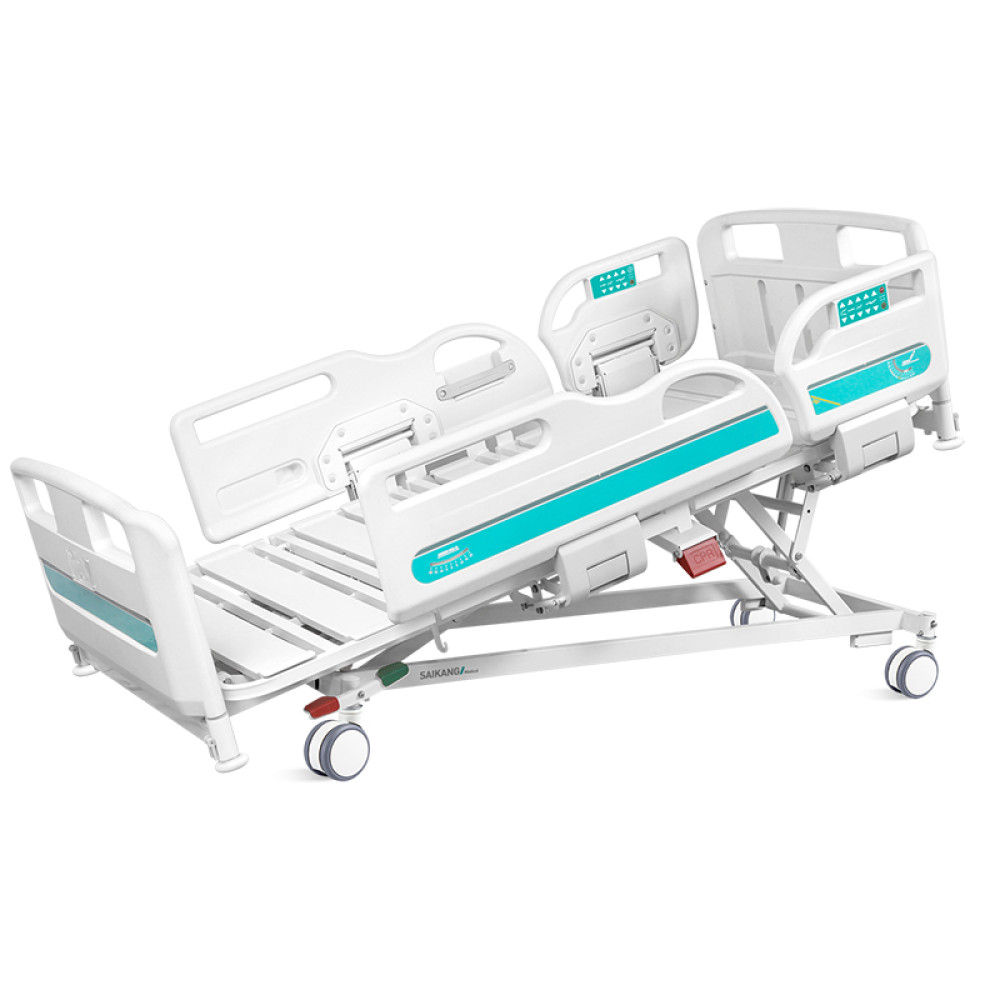

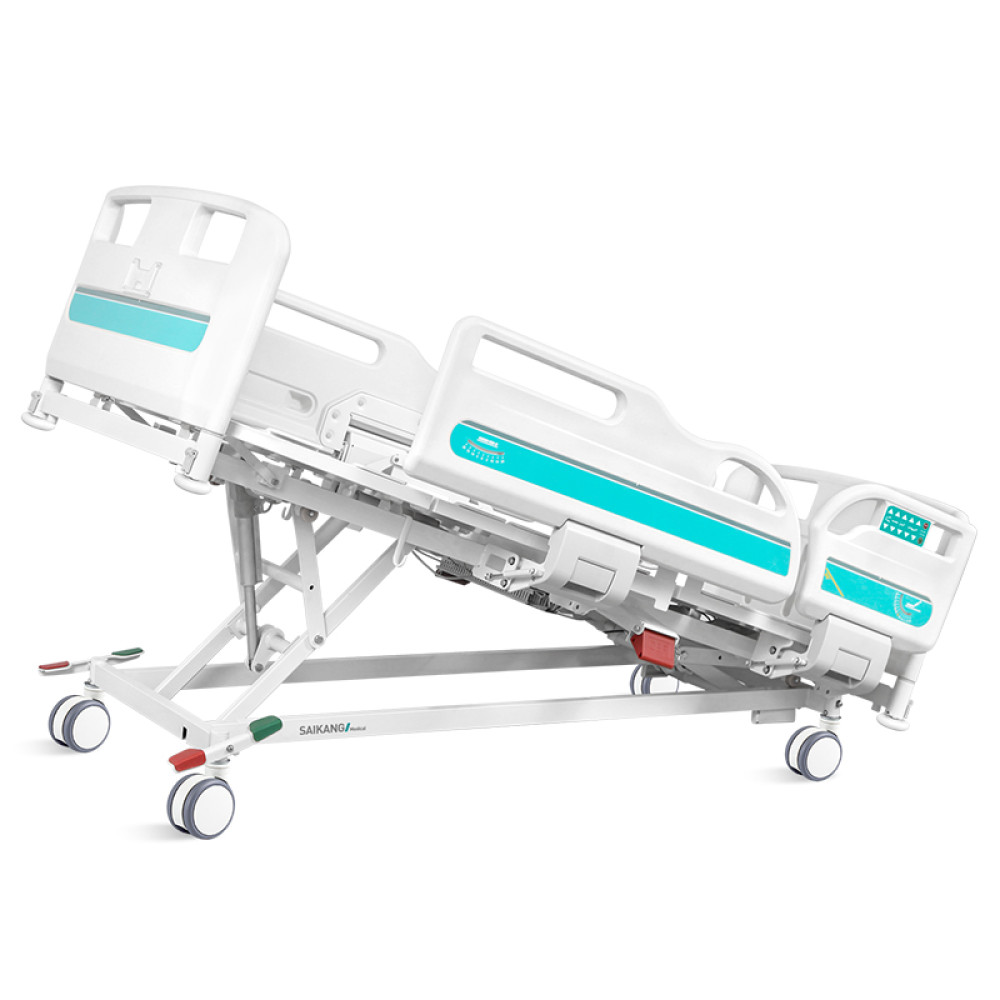

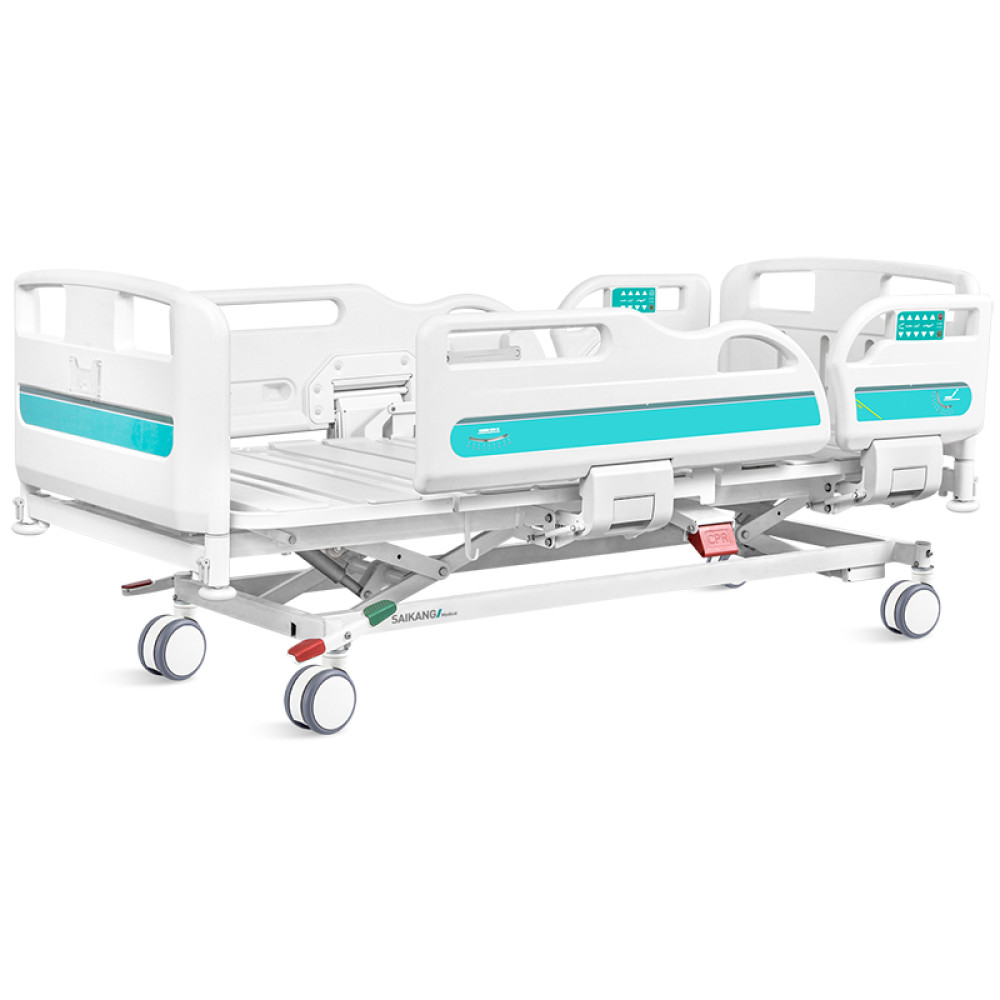

Electric hospital bed Y8y(SKD-C)

Important quality control
- Double auto-regression function
- Super-low bed position 360mm
- PP bed platform, Removable & washable
- PP safety guardrail with two steps unlocking system,patent design

Optional features(extra charge)
- Weighing System
- Bed extension 200mm
- Back up battery
- Nurse Control Panel
- Emergency Stop Button
- Cardiac Chair Position
- Directional wheels function
- 5th and 6th Extra Side Rail For Full Protection
- Monkey Pole
- Balkan Frame
- Linen Holder

Technical parameters
External size (LxWxH) - 2030x1050x360-780 mm
Mattress platform - 1925x880 mm
Safe working load - 250 kg
Back-rest adjustment - 0-75° (±10°)
Knee-rest adjustment - 0-35° (±10°)
Reverse Trendelenburg - 0-12°
Trendelenburg - 0-12°
Angle indicator - 0-90°
Bed extension - 200mm
Auto-regression - 100+60mm
Position line - 30°
Voltage and frequency  - 100-240 V · 50/60 Hz

Technical configuration
Linear motor - 4pcs
5'' double side castors, central locking system - 4pcs
ABS oasis side rail extra height - 1set
ABS oasis bed ends with safe lock - 1set
PP bed platform, removable & washable - 9pcs
Plastic socket inside PP guardrail for phone or glasses - 2pcs
Patent angle indicator for back-rest and trendelenburg position - 4pcs
100mm wall bumper wheel - 4pcs
Central locking pedal - 2pcs
ABS mattress stopper - 2pcs
Hand controller - 1pc
I V pole  -1set
I V pole prevision - 4pcs
Drainage hook - 2pcs
