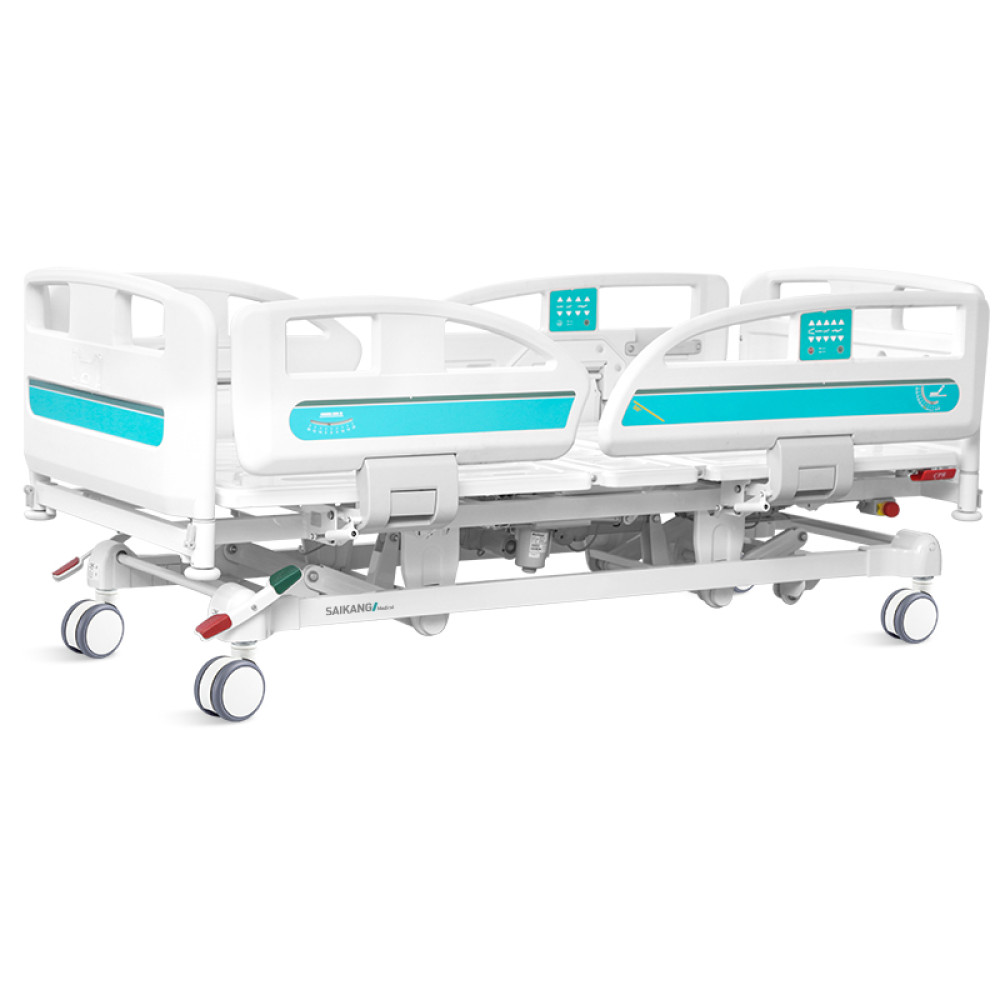

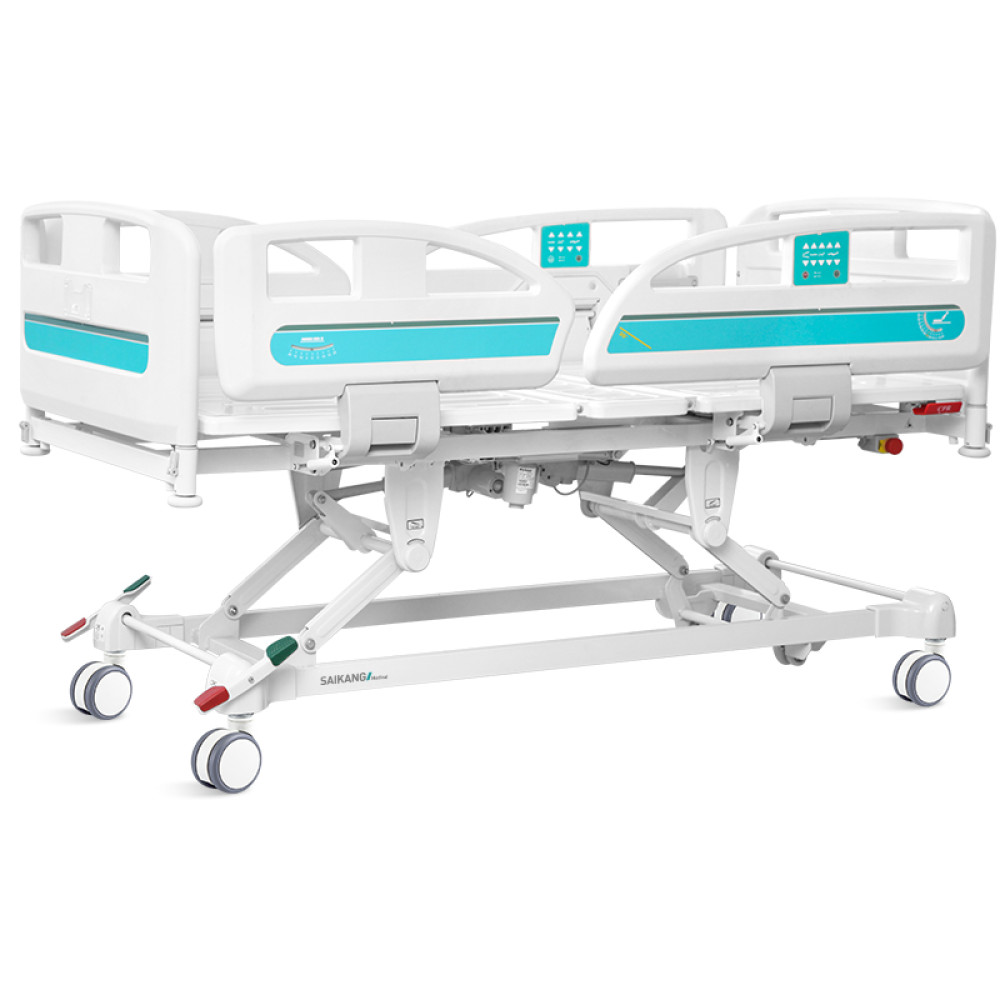

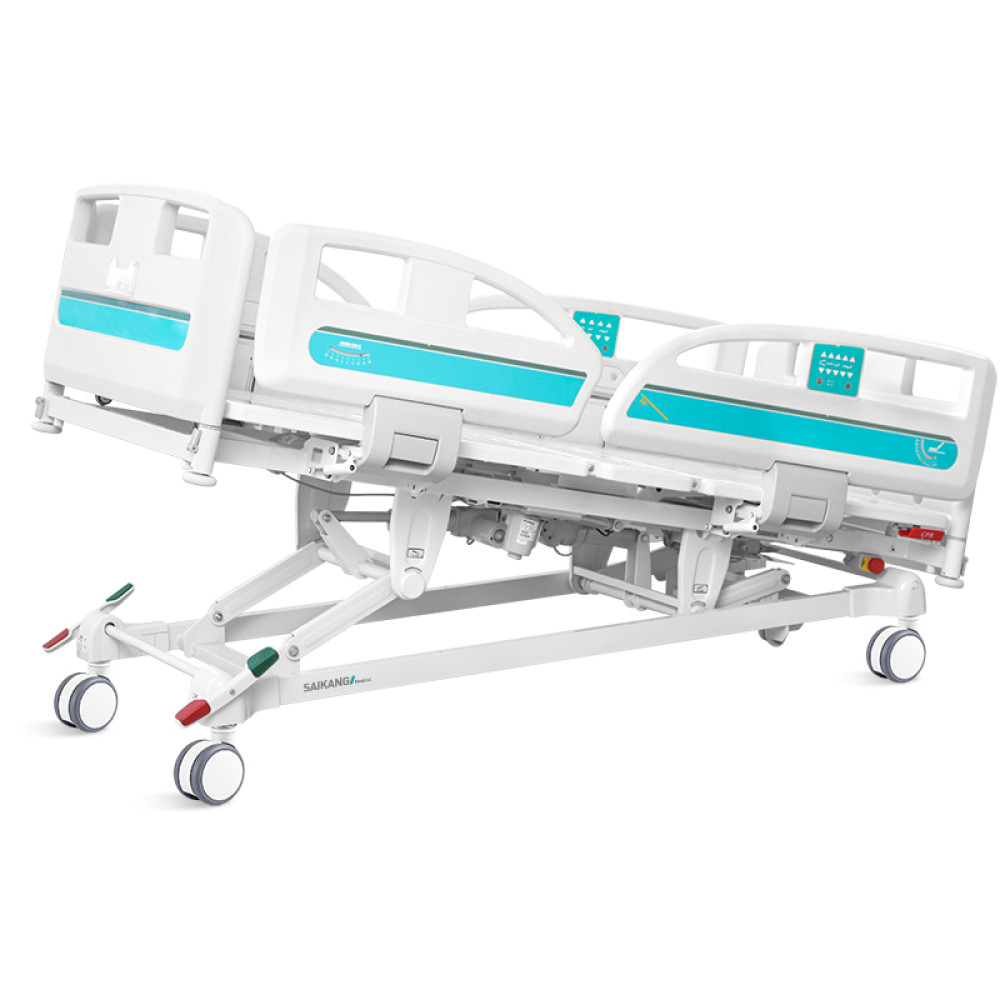

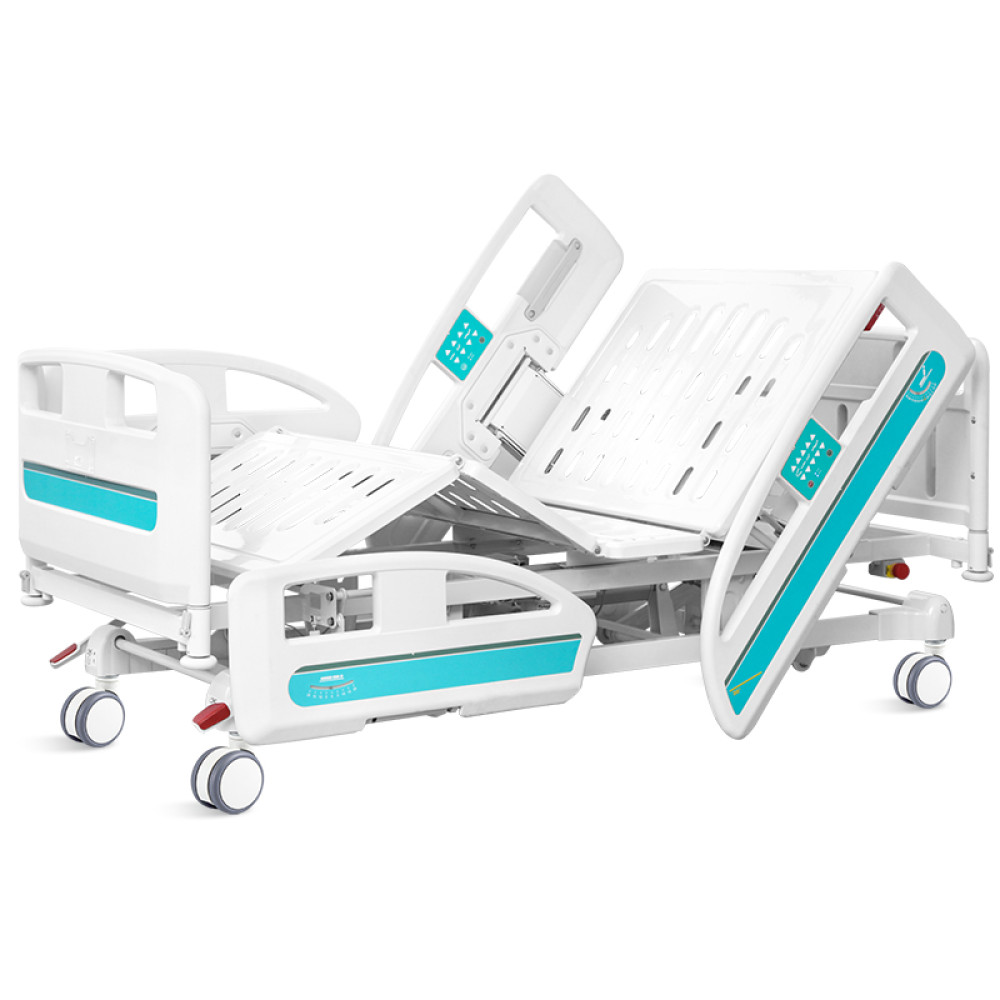

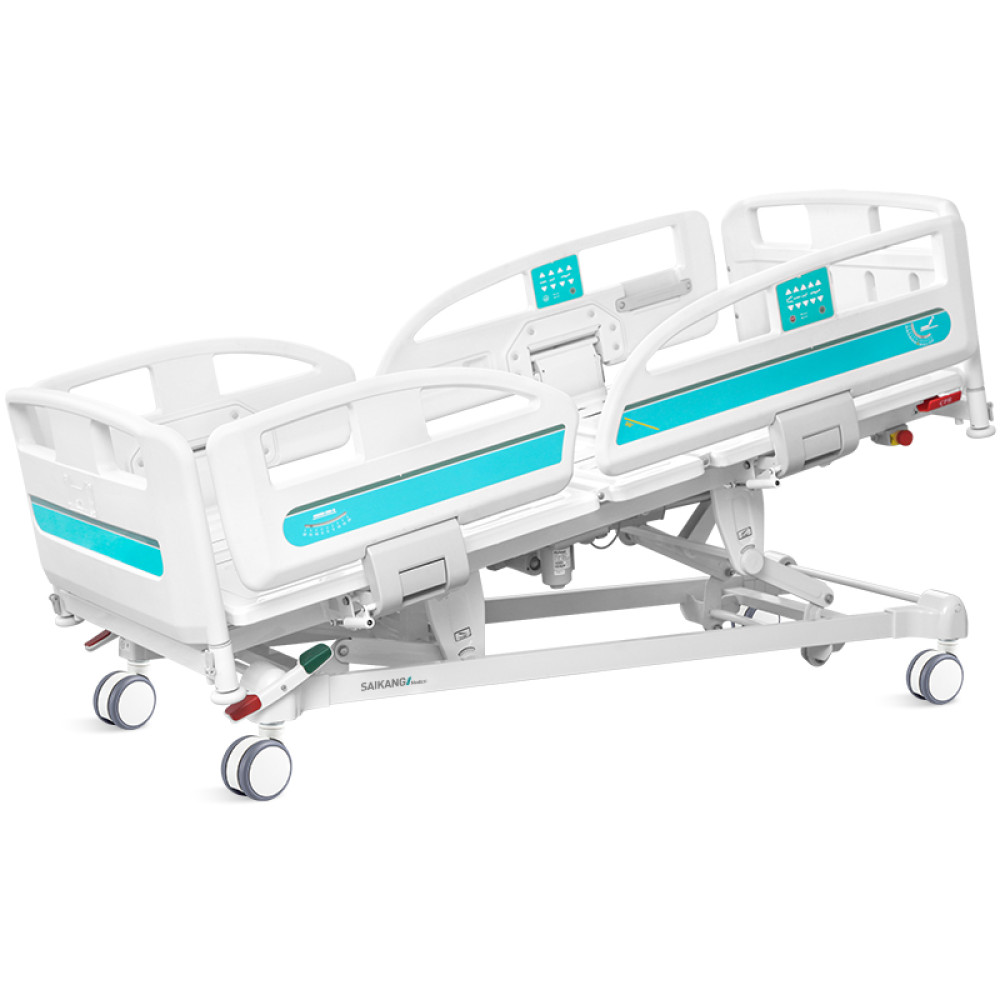

Electric hospital bed Y8t(SKD-C)

Important quality control
- Super-low bed position 480mm
- Stamping forming bed platform
- PP safety guardrail with two steps unlocking system,patent design

Optional features(extra charge)
- Hand controller
- Weighing system
- Nurse control panel
- Cardiac chair position
- Bed extension 20cm
- Back-up battery
- Directional wheels function
- ABS mattress stopper
- Monkey pole
- Balkan frame
- Linen holder

Technical parameters
External size (LxWxH) - 2140x1060x480-770mm
Mattress platform - 1925x880mm
Safe working load - 250kg
Back-rest adjustment - 0-75° (±10°)
Knee-rest adjustment - 0-35° (±10°)
Reverse Trendelenburg  - 0-12°
Trendelenburg - 0-12°
Angle indicator - 0-90°
Position line - 30°
Voltage and frequency - 100-240V · 50/60Hz

Technical configuration
Linear motor - 4pcs
5'' double side castors, central locking system - 4pcs
ABS oasis side rail extra height - 1set
ABS oasis bed ends with safe lock - 1set
Stamping forming bed platform - 1pc
Plastic socket inside PP guardrail for phone or glasses - 2pcs
Patent angle indicator for back-rest and trendelenburg position - 4pcs
Ø70mm wall bumper wheel - 4pcs
Central locking pedal - 2pcs
Emergency stop button - 2pcs
I V pole - 1set
I V pole prevision - 4pcs
Drainage hook - 2pcs
