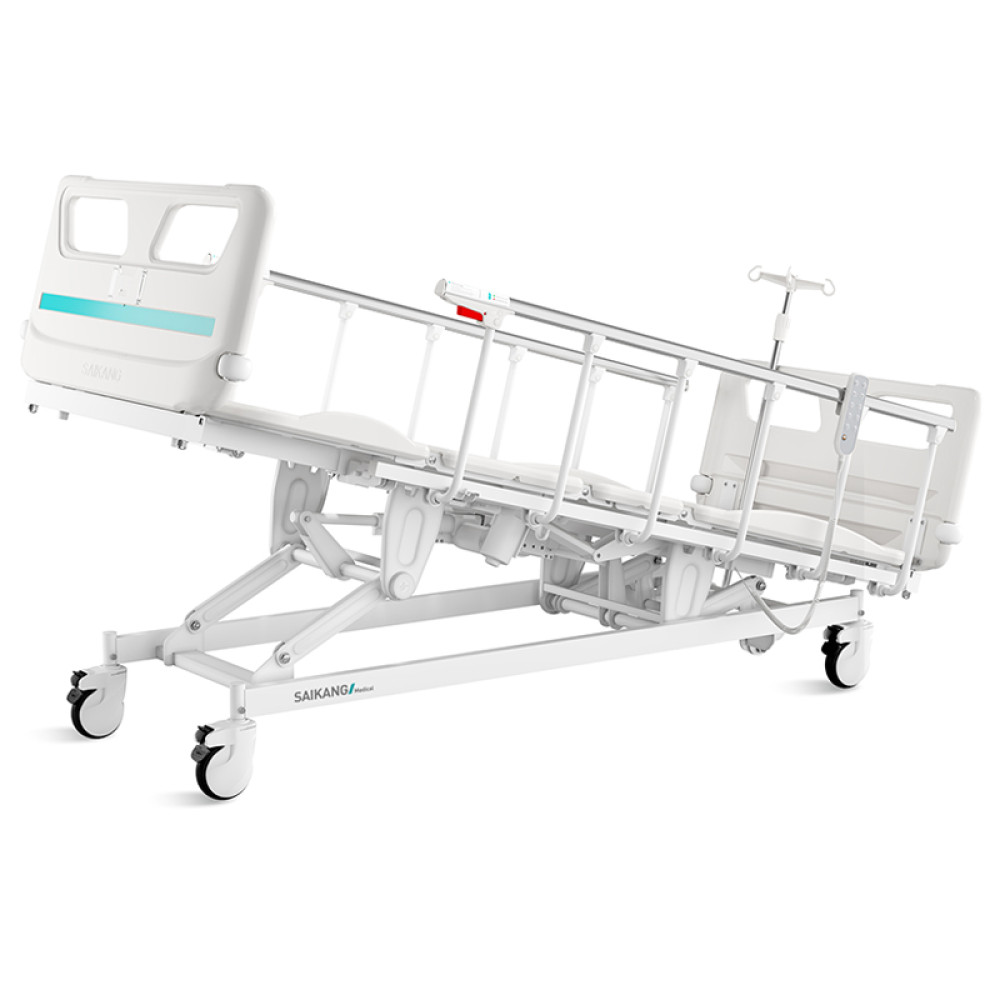

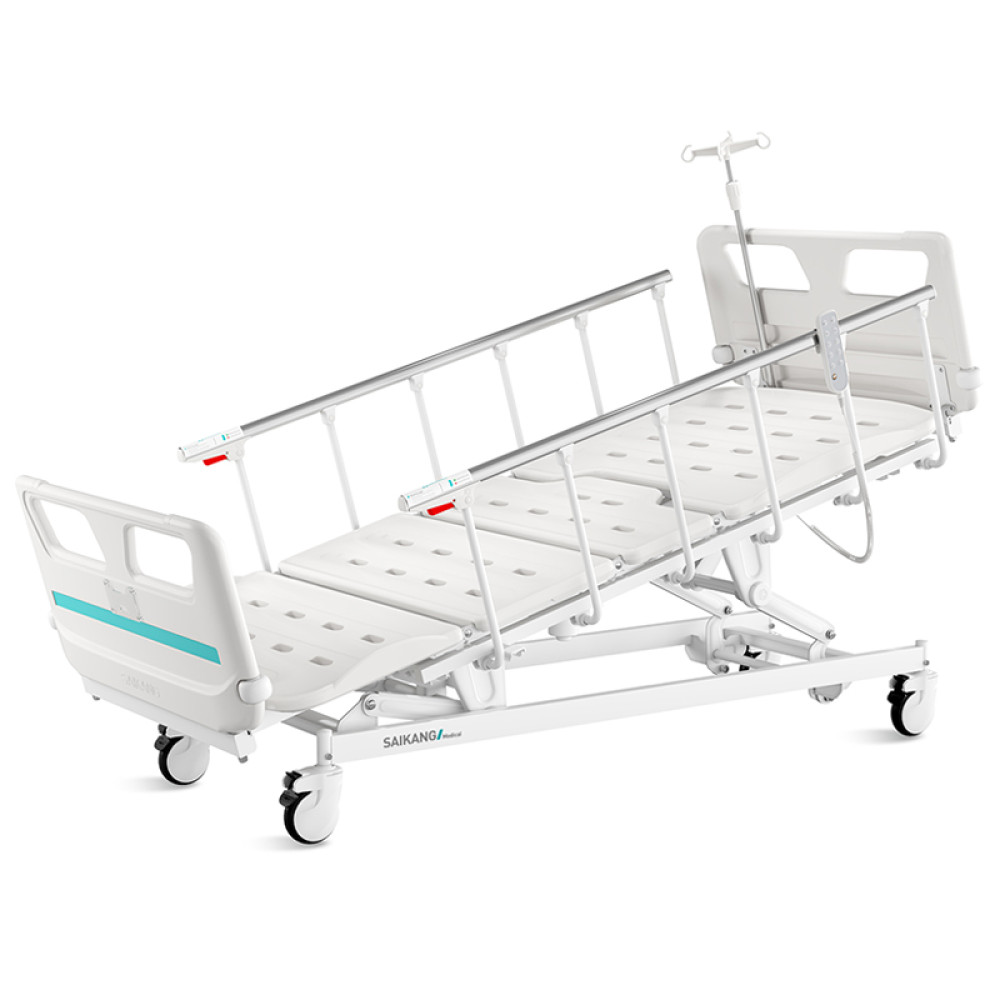

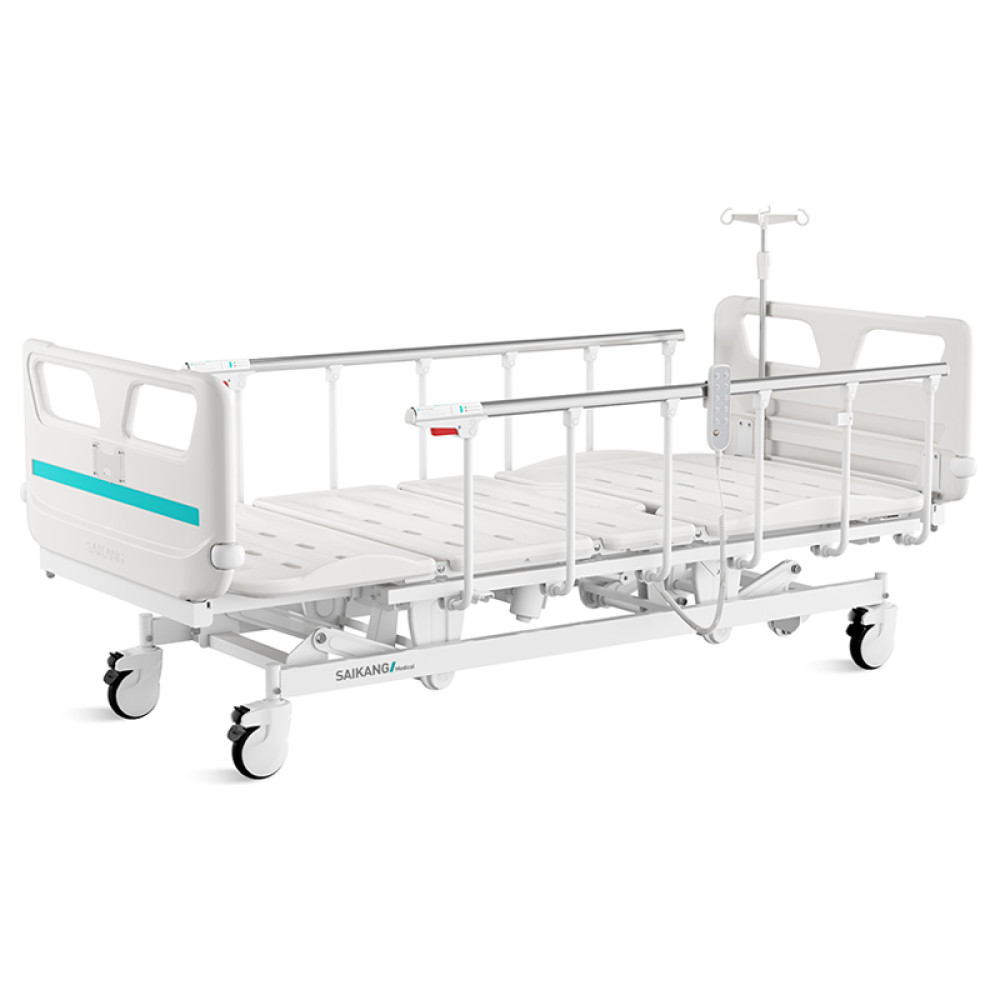

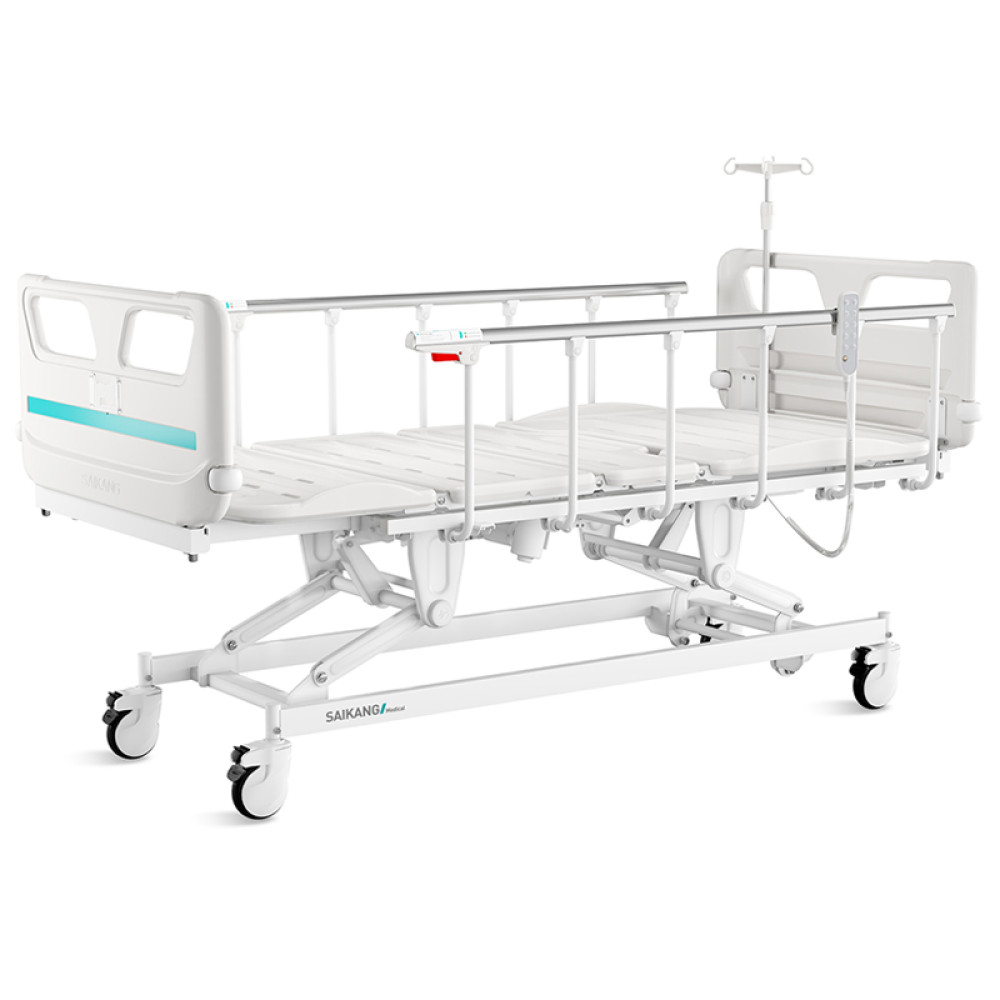

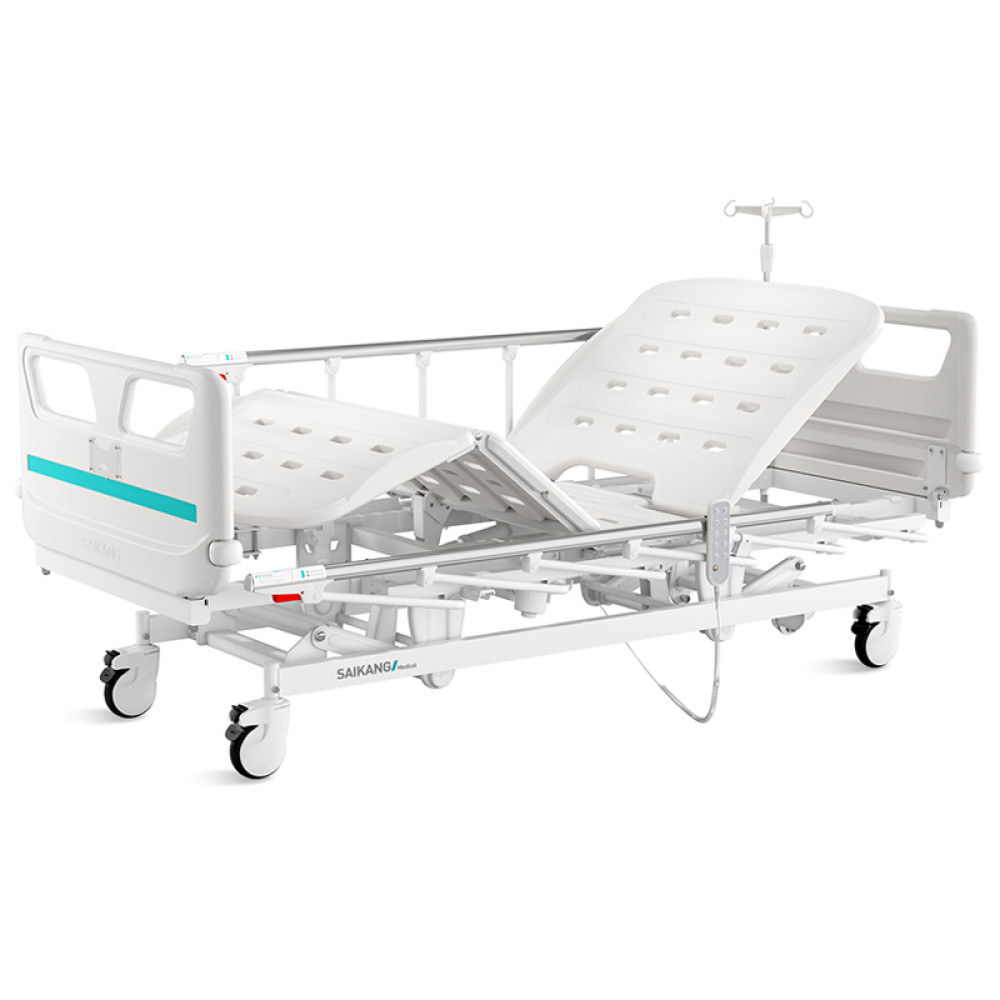

Electric hospital bed V8w(SKD-C)

Important quality control
- PP bed platform with integrated mattress retainer
- PP bed ends with safe lock with Φ65 bumper wheels

Options
- Auto-regression (back section)
- X-ray translucent mattress platform (back section)
- Manual CPR
- Night light
- Emergency stop button
- Battery back-up
- Weighing system
- Nurse controller
- Utility shelf
- Trapeze bracket/pole

Technical parameters
External size (LxWxH) - 2085x1020x455-745 mm
Mattress platform - 1925x990mm
Safe working load - 250kg
Back-rest adjustment - 0-75°(±10°)
Knee-rest adjustment - 0-46°(±10°)
Trendelenburg - 0-12°
Reverse Trendelenburg - 0-12°

Technical configuration
Linear motor - 4pcs
Hand controller - 1pc
5'' Covered Castors - 4pcs
L-shaped foldable side rail - 1set
PP bed ends with safe lock with Φ65 bumper wheels - 1set
PP bed platform with integrated mattress retainer - 1set
IV pole 4 hooks - 1set
IV pole prevision - 4pcs
Drainage hook - 2pcs
