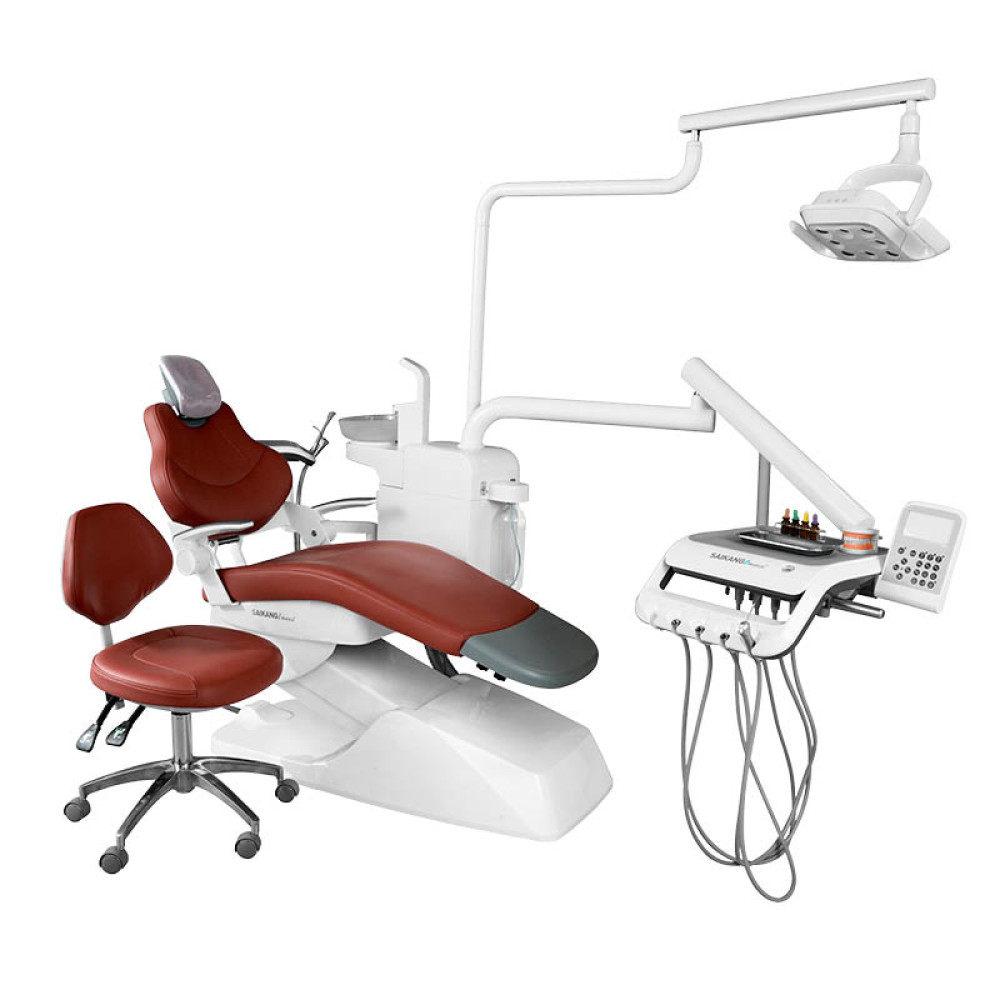

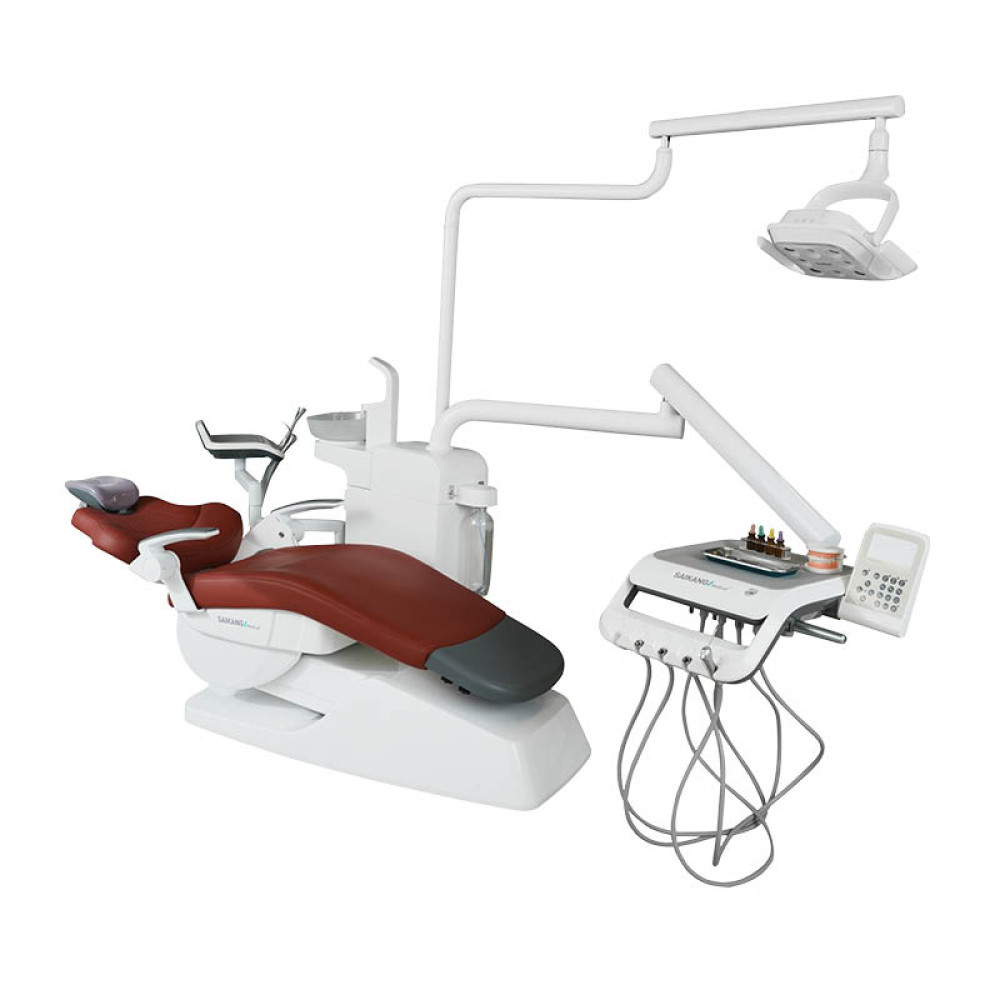

Dental Unit SDL-C0241

Important Quality Control
- Ultralow chair height desin. The lowest chair height is only 400mm, makes it easy for children or the old to climb up and down. Back rest can adjust 10° ~ 75°.
- Comfortable seamless PU leather cushion:Made of extremely wear-resistant microfiber leather with excellent softness and breathable properties. 8 cm thickened cushion with PU cover, filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment.
- High quality metal backrest, strong bearing capacity, extremely rigid.
- The foldable double joint headrest adjusts freely for optimal patient positioning.
- Double side rotatable armrest: the right armrest is rotatable freely, just push it outward, easy to operate, provide patients with a sense of security, convenient for patients to climb up and down.
- Using professional medical water and gas pipeline, anti aging, anti corrosion, high pressure resistance, durable.
- Using the gas lock fixed, easy to operate, press the gas lock switch can easily adjust the height of the working table.
- Two-color LED dental light brings a lot to your practice, induction control, can adjust the color temperature and lighting brightness, anti resin curing.
- Push-button main control panel, down-hanging instrumentation design. Five choices for delivery of your handpieces and accessories. Table top can hold surgical utensils, can bear up to 3kg after locking.
- Built in LED low voltage film viewer, uniformity and bright of luminance.
- Frosted glass spittoon, attractive appearance and detachable, rotation angle ≧ 90°.Smooth inside and edge, easy to clean and disinfect, smooth water.
- Rotatable assistant console with four instrument positions, can be placed strong and weak saliva suction; everything you need is easy to position and comfortably within reach.

Function
- Full computer control operating system, integrated computer board, master, associate, foot three controls are connected by USB, with one - button reset and spitting position. Computer control panel has nine special position memory function.
- Taiwan TimoTIon DC silent motor, upper motor is 3500N fast motor, lower motor 8000N.
- Circular pneumatic foot switch is convenient for doctor to use the normal functions of the device.The patient chair locks when the foot switch is pressed, ensuring a safe treatment process.
- Independent water supply handpieces, automatic supercharging and constant pressure; can flexibly choose tap water or purified water, also meet the needs of pipeline disinfection.

Technical parameters
power supply - 220V 50Hz
input power - 1100VA
Gas pressure - 0.55-0.8 Mpa / 5.5-8.0 bar
Water pressure - 0.2-0.4 MPa / 2.0-4.0 bar
Gas displacement - 55 L/min
External Size - L1880mm*W980mm*H750mm
Height adjustment  - 400 mm～750 mm
TBackrest adjustment - 105°-170°
Head rest expansion - 120mm
Polarization resistance voltage - ≥±500mV
LED film viewer - The color temperature >6500K and the brightness >2000cd/m2
LED dental Light - Two-color LED, induction switch, strong light ≥30000lx; Low light ≥8000 lx
Package size - L1450mm*W1120mm*H1250mm
Weight - Gross weight: 300KG; Net weight: 250KG
