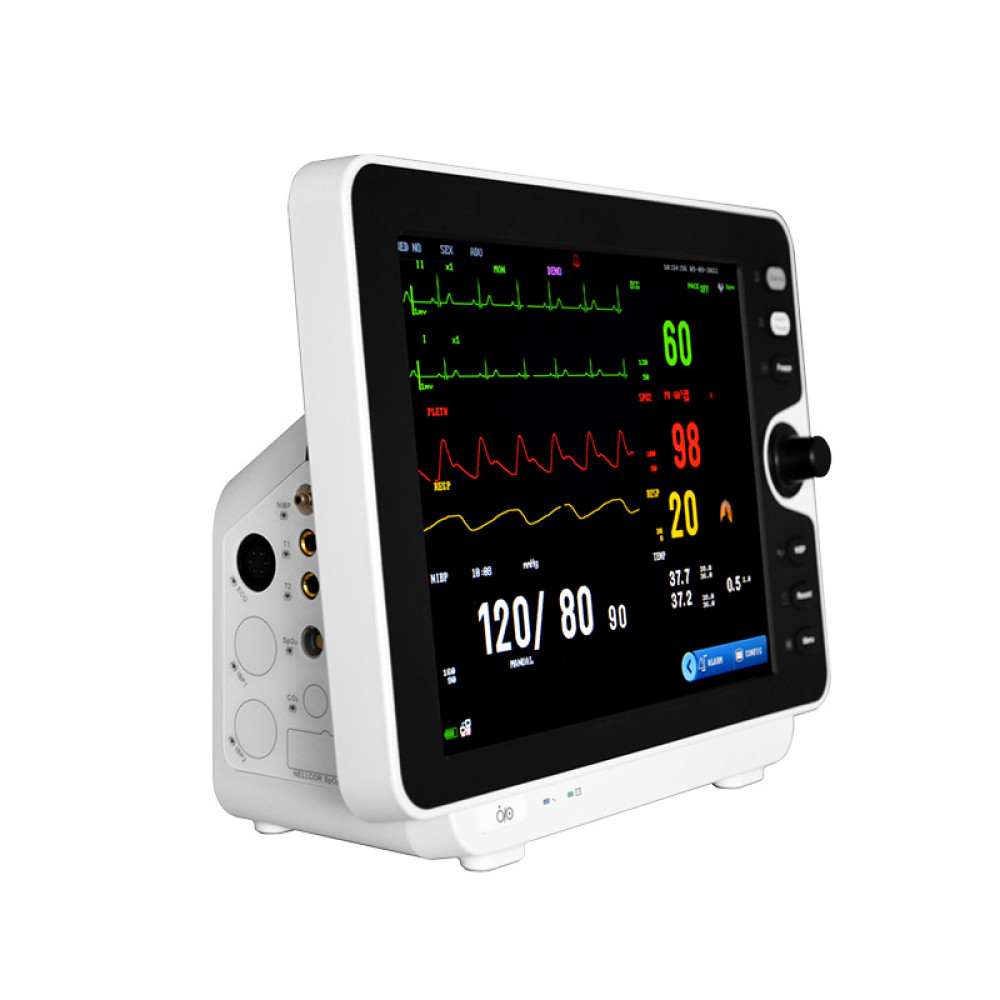

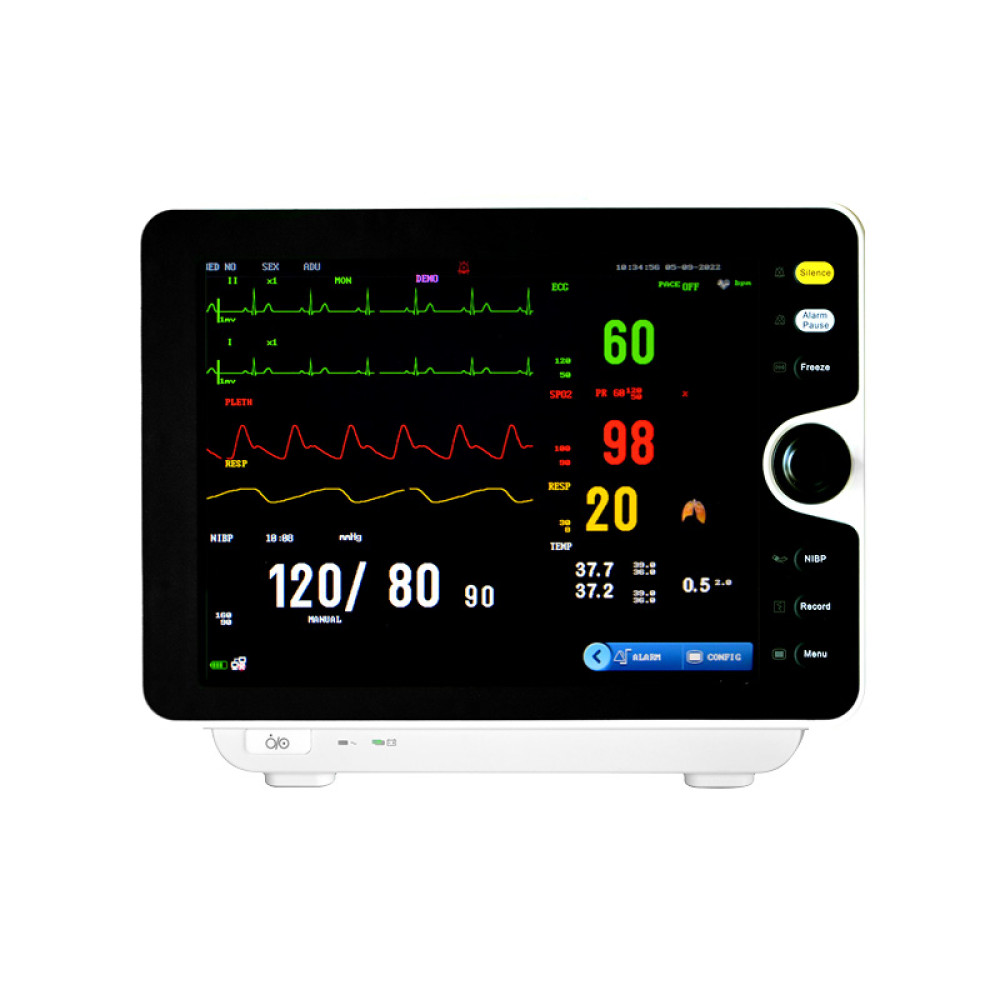

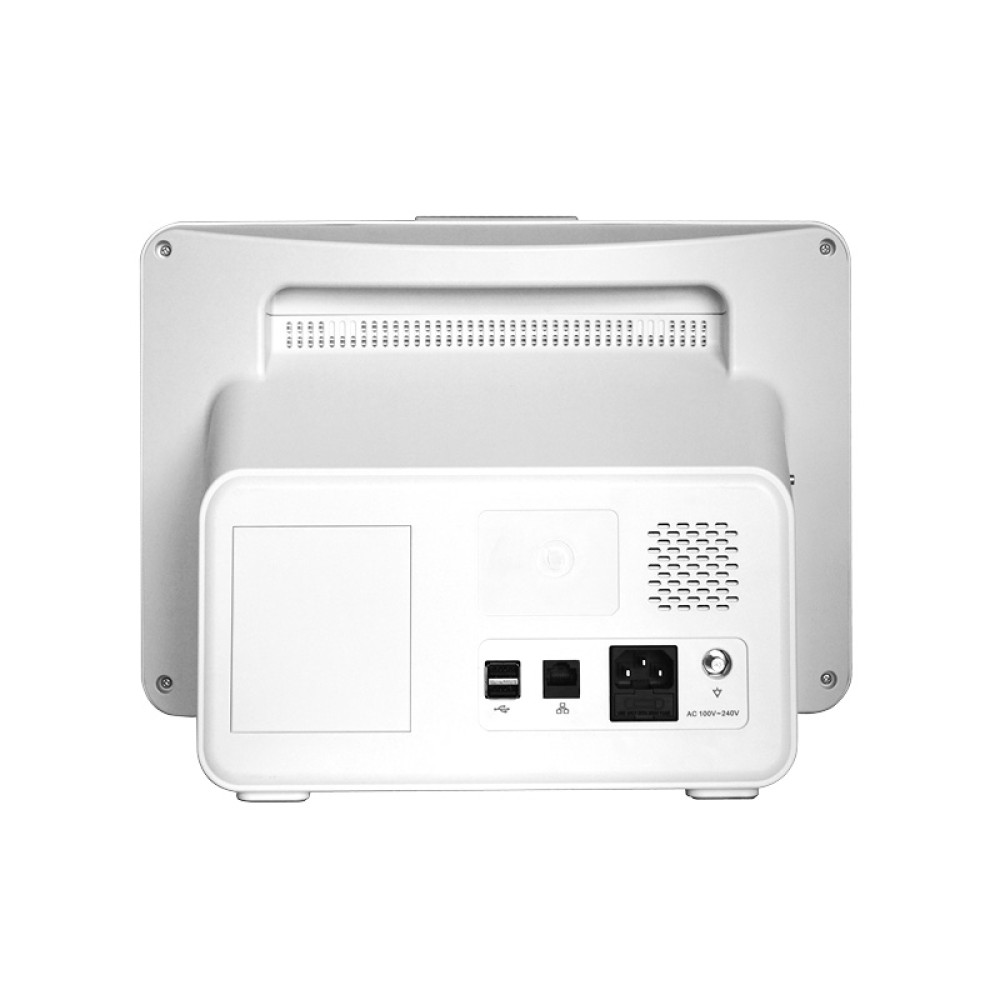

Patient monitor SK-EM401 12 Inch

Technical parameters
Product weight - NW: 2.72kg
Product size - 262×336×84mm
Package size - 380×350×300mm
Operating temperature - 0-40 ℃
Working humidity - ≤ 85
ECG（Lead configuration）- 6-pin, 5-lead ECG lead wires
ECG（Gain settings） - ´0.25，´0.5，´1，´2，´4，automatic
ECG（Heart rate range Adults） - 1.0 bpm to 300 bpm
ECG（Newborns/children） - 15 bpm to 350 bpm
ECG（Electrode polarization voltage range） - ±300mV
Respiration（Measurement method） - RA-LL (R-F) Impedance Method
Respiration（Respiration rate range: Adults）- (0 to 120) BrPM
Respiration（Children and newborns）- (7-120) BrPM
Respiration（Apnea alarm）- (10-40) seconds
Measurement range of blood oxygen saturation - 0～100%, resolution: 1%, accuracy: 70%～100%: ±2, 0% to 69%: undefined
Measurement range of pulse rate - 30 bpm to 300 bpm, with a resolution of 1 bpm and an accuracy of ±3 bpm
Non-invasive blood pressure（Operating modes）- manual/automatic/continuous
Measurement interval for automatic mode - 1-480 minutes
Non-invasive blood pressure（Pulse Rate Range）- (30 - 300) bpm
Non-invasive blood pressure（Measurement range）- Systolic Pressure: (40 to 270) mmHg；Diastolic Pressure: (10 to 215) mmHg；Mean Pressure: (20 to 235) mmHg
Non-invasive blood pressure（Static pressure range）- (0-300) mmHg
Non-invasive blood pressure（SStatic Pressure Accuracy）- ±3 mmHg
Body Temperature Measurement Range - (0 to 50)°C, Accuracy 0.1°C

Power supply
Power supply voltage - AC 100~240 V
Power frequency - 50/60Hz
Maximum input power - 70VA
The fuse - F2AL 250V
Working mode - continuous working
Built-in lithium battery - DC 11.1V is not less than 2000mA, working time is not less than 2 hours.
